Discrete Allen Key Handle
Allen_Key-cover.stl
372KB
Allen_Key-handle 2.5mm.STL
2MB
Allen_Key-handle 5mm.stl
2MB
Discrete Allen Key Handle by RyanDavis is licensed under the
CC-AttributionLicense
By downloading, you agree to MakerTouch's Terms of Service and Privacy Policy.
- Description
- Build Instruction
Size: Medium (5-10cm)

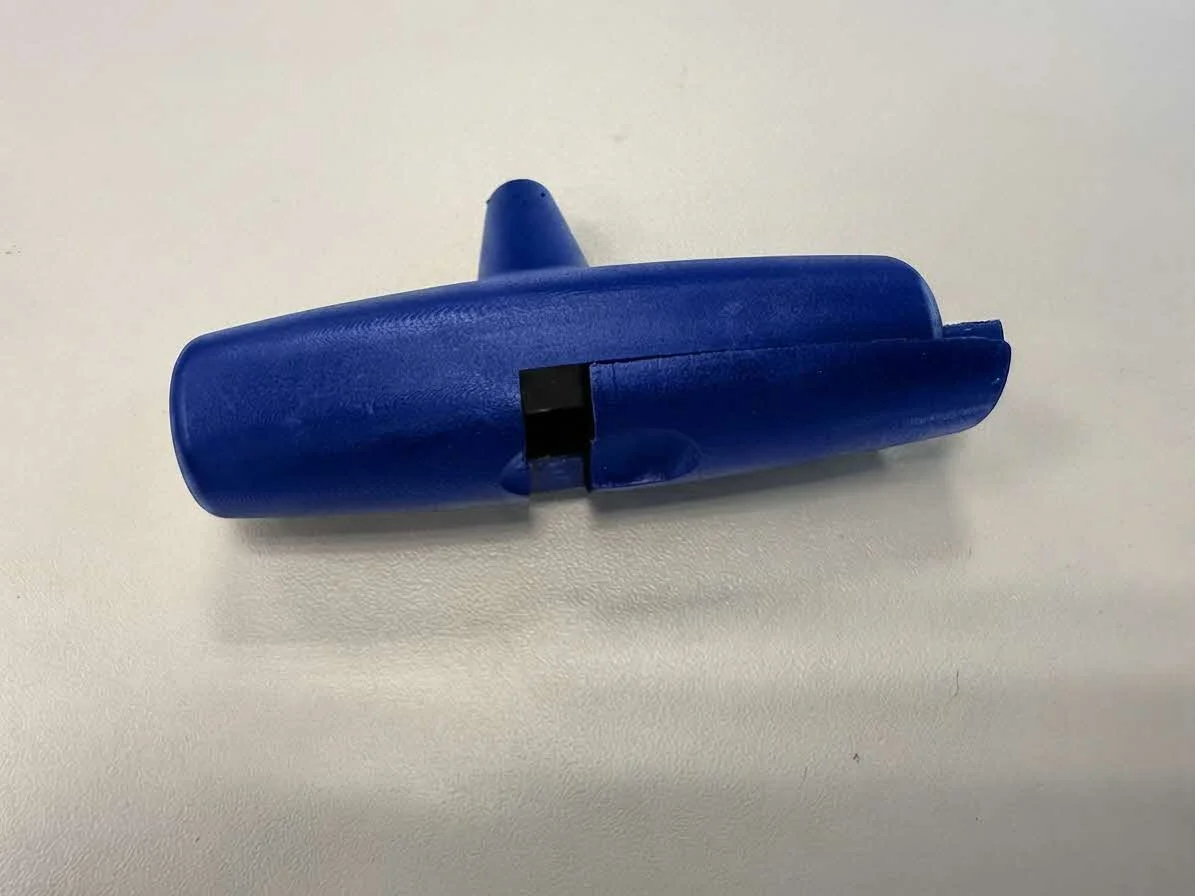

A smart, ergonomic T-handle designed for Allen keys, making tasks like installing threaded inserts into a waste board significantly easier.
Unlike standard tool handles where the key is exposed or sticks out, this design features a completely discrete sliding cover that encloses the key entirely, keeping it hidden and clean when stored or used. The handle provides a comfortable grip for smooth rotation and torque. Two separate models are available: one optimized for a 2.5mm Allen key and another for a 5mm Allen key
Notes
- Tolerance: Designed with a precise 0.15 mm tolerance between the handle and the slide cover for a smooth fit.
The maker remixed this product from:
License
Discrete Allen Key Handle by RyanDavis is licensed under the
CC-AttributionAssembly Instructions
- Insert the Allen key into the handle and push it all the way in.
- Slide the cover shut to enclose the key completely.
